Negative Step Change and (We,Wu)=(1,1)

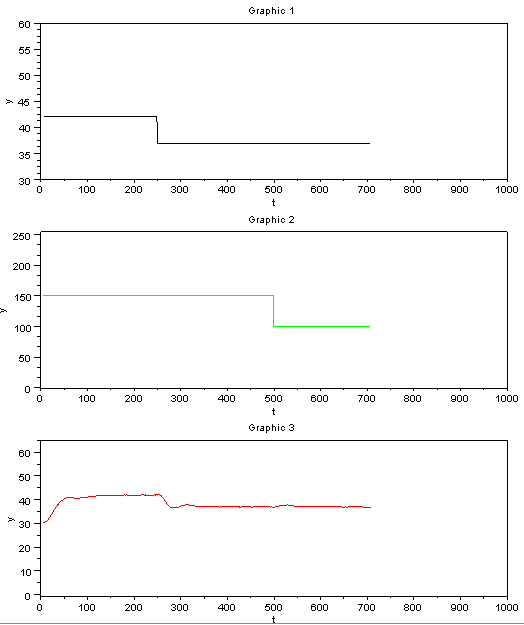

Figure 10.13: Xcos for negative Step Change and (We, Wu)=(1,1)

Here we expect somewhat similar results as was the case with positive step in temperature set point.

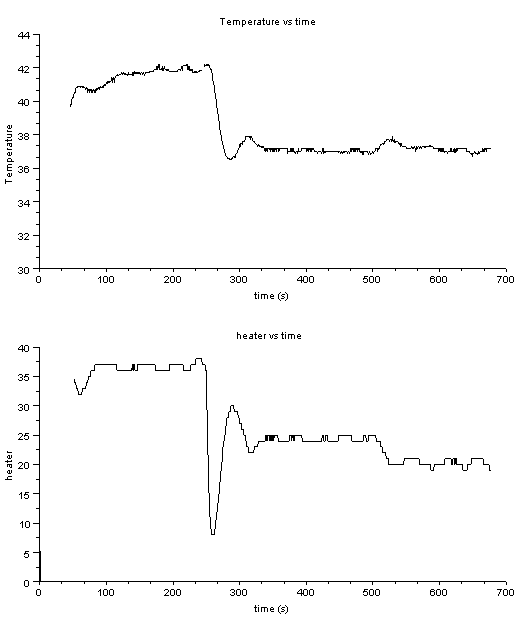

Figure 10.14: Temperature and heater plot

We can very clearly make out that the results follow the trends as was explained for the negative step input in the section 5.2
