We =100 and Wu = 2

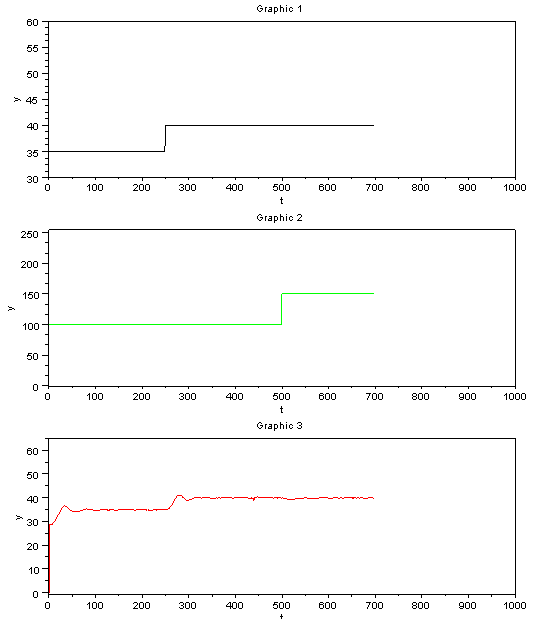

Figure 10.19: Output for We =100 and Wu = 2

Here, we have used We as 100 and Wu as 2. The response after the positive step in temperature set point is slightly oscillatory. The temperature very well stabilzes at the required setpoint. The settling time observed is fairly low.

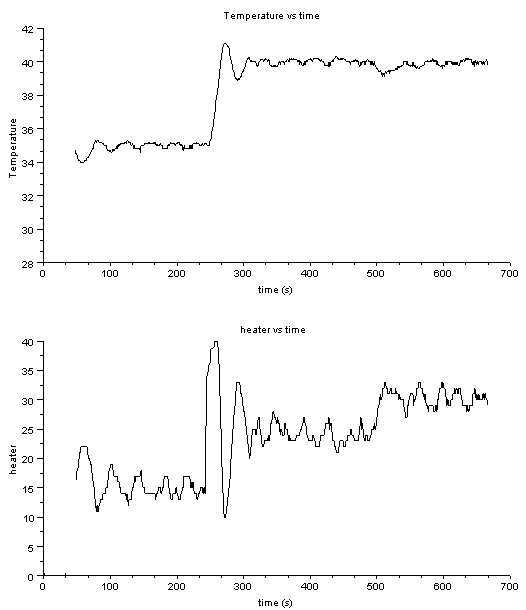

Figure 10.20: Temperature and heater plot

Now having seen the results of this experiment, we would like to check the possible effect of reversing the values of We and Wu. So, we conduct the next experiment, in which we have We as 2 and Wu as 100.
