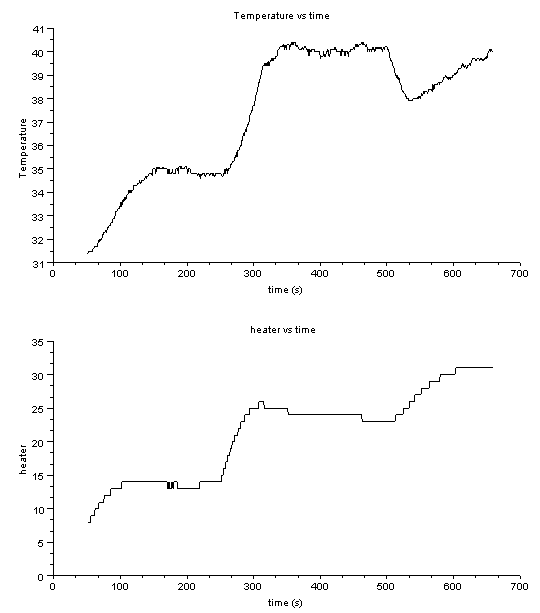

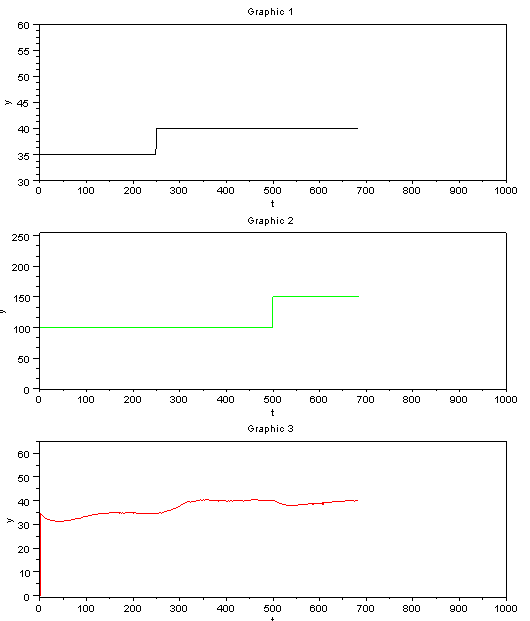

With increase in Wu, we observe that the temperature stabilzes at the required stepoint, but the settling time for reaching that setpoint increases. Also, the response is not oscillatory. This result can be very clearly seen in the following temperature and heater graph.
