Having seen the effect of low We and high Wu (in the last section), we would like to see what happens if We is slightly increased keeping Wu the same. For this we increase the value of We to 10 and keep Wu at constant 100.

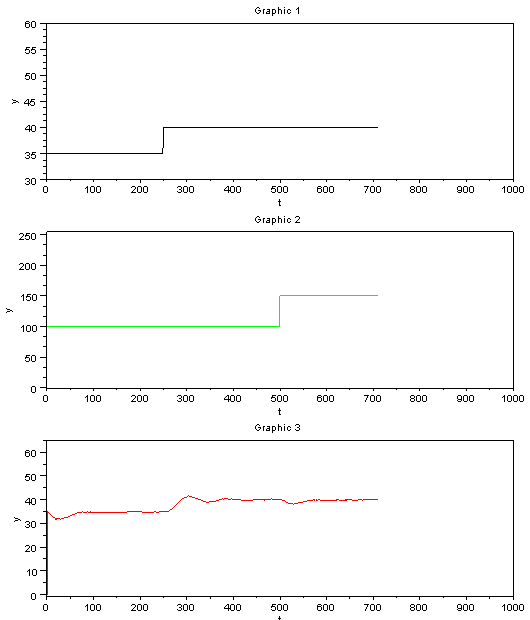

Figure 10.23:
Output for We =10 and Wu = 100
|
 |
We observe that this experiments performs better than in the last section (where We was 2). It is slighly oscillatory and also, the settling time decreased much as compared to last experiment.

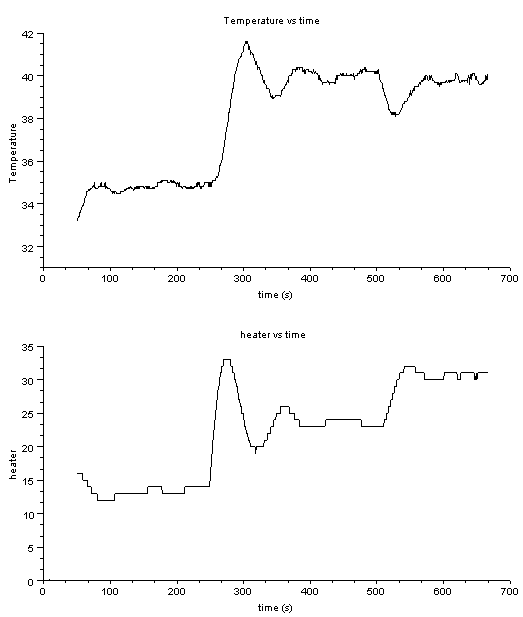

Figure 10.24:
Temperature and heater plot
|
 |
