We now do a similar study for the case of Wu. We increase the value of Wu to 10, keeping We constant at 100.
Figure 10.25:
Output for We =100 and Wu = 10
|
 |
As is clear from the figure, we see slightly lesser oscillations compared to the case when We was 100 and Wu was 2. Settling time more or less remained the same.

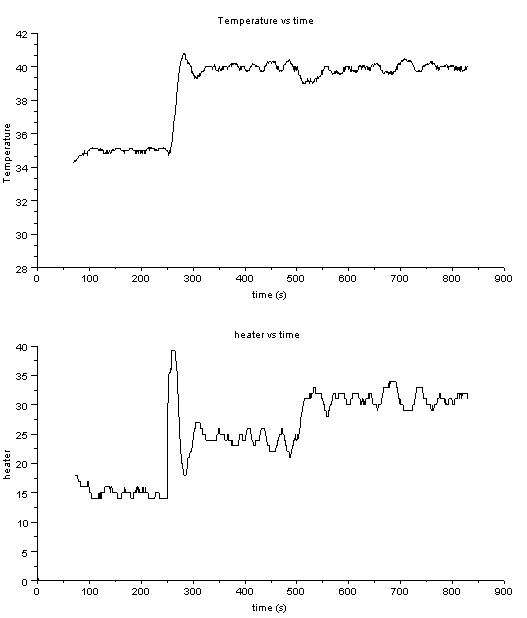

Figure 10.26:
Temperature and heater plot
|
 |
